20.1MP 1″ Exmor RS BSI CMOS Sensor
ZEISS 24-70mm-Equiv. f/1.8-2.8 Lens
UHD 4K30p Video with HLG & S-Log3 Gammas
3.0″ Side Flip-Out Touchscreen LCD
Sony ZV-1 Specs
Pixels Effective: 20.1 Megapixel
Maximum Resolution 5472 x 3648
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Sensor Type CMOS
Sensor Size 1″
Image File Format JPEG, Raw
Image Stabilization Digital, Optical
Focal Length 9.4 to 25.7mm (35mm Equivalent Focal Length: 24 to 70mm)
Optical Zoom 2.7x
Digital Zoom 16.3x Maximum (44x Combined Zoom)
Maximum Aperture f/1.8 to 2.8
Minimum Aperture f/11
Focus Range 1.97″ to Infinity / 5 cm to Infinity (Wide)
11.81″ to Infinity / 30 cm to Infinity (Telephoto)
Optical Design 10 Elements in 9 Groups
ISO Sensitivity Auto, 100 to 12800 (Extended: 64 to 25600)
Shutter Speed Mechanical Shutter
1/2000 to 30 Second
1/2000 to 4 Second in Auto Mode
1/32000 to 30 Second
1/32000 to 4 Second in Auto Mode
Metering Method Average, Center-Weighted Average, Multi, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -3 to +3 EV (1/3 EV Steps)
White Balance Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
Continuous Shooting Up to 24 fps at 20.1 MP
Interval Recording Yes
Self-Timer 2/5/10-Second Delay
Special Options Panorama
Recording Modes MP4/XAVC S
UHD 4K (3840 x 2160) at 23.976p/25p/29.97p [60 to 100 Mb/s]
Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [16 to 100 Mb/s]
Full HD (1920 x 1080) at 50i/59.94i [17 to 24 Mb/s]
Recording Limit Unlimited
Video Encoding NTSC/PAL
Audio Recording Built-In Microphone (Stereo)
External Microphone Input (Stereo)
Audio File Format AC3, Linear PCM (Stereo)
Viewfinder and Monitor
Monitor Size 3″
Monitor Resolution 921,600 Dot
Monitor Type Articulating Touchscreen LCD
Built-In Flash No
Flash Modes Auto, Flash On, Off, Rear Sync, Slow Sync
External Flash Connection Hot Shoe
Memory Card Slot Single Slot: SD/SDHC/SDXC/Memory Stick Duo Hybrid

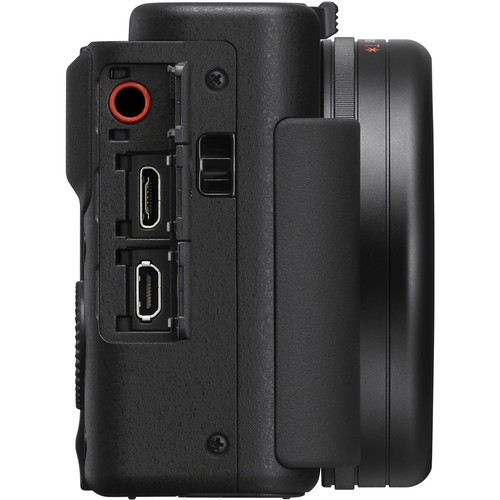

Connectivity 3.5mm Microphone, HDMI D (Micro), USB Micro-B (USB 2.0)
Operating Temperature 32 to 104°F / 0 to 40°C
Battery 1 x NP-BX1 Rechargeable Lithium-Ion, 3.6 VDC, 1240 mAh (Approx. 260 Shots)
Dimensions (W x H x D) 4.15 x 2.36 x 1.71″ / 105.5 x 60 x 43.5 mm
Weight 10.37 oz / 294 g (Body with Battery and Memory)
Package Weight 0.935 lb
Box Dimensions (LxWxH) 6.2 x 4.7 x 2.9″
In stock (can be backordered)
Location(s): Golden Valley
Vloggers and influencers rejoice, the Sony ZV-1 is a purpose-built compact camera blending the proven imaging capabilities of the RX100-series platform with an updated physical design for more efficient content creation.
Featuring a side flip-out 3.0″ touchscreen and a directional 3-capsule microphone that are perfect for front-facing recording, the ZV-1 also caters to this crowd with the Product Showcase Setting, Background Defocus function, Soft Skin Effect, and Face Priority Auto-Exposure.
Despite its sleek and lightweight design, the ZV-1 is also characterized by its large right-hand grip that is ideal for one-handed recording in conjunction with a front tally lamp, larger REC button on the top plate, and a Multi Interface Shoe for attaching accessories. An impressive ZEISS 24-70mm-equivalent standard zoom lens, with a bright F1.8-2.8 maximum aperture range, is also featured and, suiting recording while walking, Active SteadyShot image stabilization helps to steady footage and reduce the appearance of camera shake for smoother takes.
Inside, the ZV-1 has some familiar imaging attributes in the form of a 20.1MP 1″-type Exmor RS stacked CMOS sensor and BIONZ X image processor, with front-end LSI, which contributes to impressively fast performance along with wide-ranging sensitivity to suit working in a variety of conditions. The processing capabilities avail Real-Time Eye AF and Real-Time Tracking for quick and precise focusing and subject tracking. In terms of video specs, UHD 4K recording at 30p is supported for extended takes and a micro-HDMI port can be used to conjunction with an external recorder or monitor if desired. Footage is also benefitted by Sony’s S-Log3/2 and HLG picture profiles that match up with their professional cine cameras for refined color, dynamic range, and detail when recording.
Utilizing an advanced stacked structure with an integrated DRAM chip, the 20.1MP 1″ Exmor RS CMOS sensor is able to deliver outstanding image quality from ISO 100-12800 with incredibly fast performance. This sensor stacks the pixel area, a high-speed signal processing circuit, and memory in order to increase data throughput and deliver features such as Single Burst Shooting, an Anti-Distortion shutter, UHD 4K video, and more. This 1″ sensor also has 315 phase-detection AF points and 425 contrast detection areas for faster, more precise focusing.
This sensor is paired with a revised BIONZ X image processor and front-end LSI, which dramatically improve the speed and throughput of the entire imaging system, enabling blackout-free continuous shooting at up to 24 fps with continuous AF/AE calculations being performed at 60 times per second. The front-end LSI and enhanced sensor performance also improve overall image quality, especially at higher sensitivities, by reducing noise and offering higher perceived resolution and color definition.
Spanning a useful 24-70mm equivalent range, the integrated ZEISS Vario-Sonnar T* lens suits working in a wide range of situations. Despite its compact, retractable form factor, the lens still retains a bright F1.8-2.8 maximum aperture range that benefits working in low-light conditions as well as isolating subject matter using shallow depth of field techniques. The optical design incorporates a series of specialized elements to reduce aberrations and distortions, in order to achieve high sharpness and accurate rendering, and a ZEISS T* anti-reflective coating has also been applied to suppress reflections and glare for improved contrast and color fidelity.
The flexible reach is complemented by Optical SteadyShot image stabilization, which minimizes the appearance of camera shake to suit handheld shooting in low-light conditions.
Able to record UHD 4K video at 30/24 fps, the ZV-1, is capable of producing movies with exceptional clarity. By using a full pixel readout without binning, the camera collects about 1.7x the information needed for 4K output. This oversampling helps to increase clarity while reducing the impact of moiré and jaggies. Benefitting sharper recording, an Active SteadyShot mode can be used for recording that prioritizes smoothness when reducing the appearance of camera shake. Fast Hybrid AF is available during movie shooting for ensuring accurate, fast tracking using phase-detection AF points. The camera also offers Sony’s advanced XAVC S format for recording a high bit rates up to 100 Mb/s. In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling.
Affording extensive customizable color and gamma controls, the ZV-1 allows users to adjust the gamma, black level, knee, color level, and more. Also, users can use the same S-Log2 Gamma Curve that is found on high-end Sony Cinema cameras that squeezes up to 1300% more dynamic range into the video signal then traditional REC709, for increased post-production flexibility. HLG (Hybrid Log-Gamma) support is also available, along with the BT.2020 color space, for recording within a wide color gamut and, in addition to S-Log2, S-Log3 is also available for producing an effective 14-stop dynamic range with increased grading control in the shadow to mid-tone regions of the image.
Speed is also a huge advantage of the ZV-1, and, in video, users will benefit from advanced High Frame Rate shooting and super slow motion. In Full HD, shooters will have access to a standard 120 fps setting that will enable outstanding slow motion when placed in editing software. In addition to this, the camera also offers a dedicated HFR mode that boosts the camera’s frame rate to up to 960 fps.
A Photo Capture function is built directly into the camera, allowing shooters to quickly save an 8.29MP still from their UHD 4K movies. Full HD can also benefit from this feature, where users will be able to pull a 2MP still. Additionally, the camera is NTSC/PAL switchable, making it usable around the world, vertical videos can be recorded with embedded metadata to correct for the vertical orientation during playback.
